All-in-one data logging and analysis
DatPRO

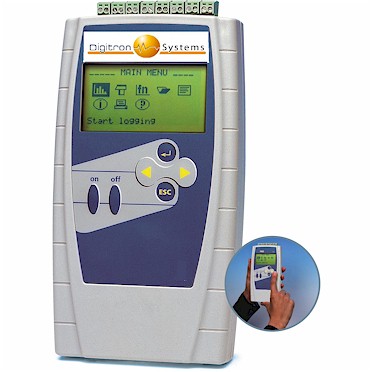

The multi-channel data logger DatPRO is a portable device that can run either on batteries, with power supply: provides a 16-bit resolution and 8 inputs configurabilie completely. It also features a large graphic display with functions of analysis can display measurements of voltage signals, current and temperature, a compact, professional and can be used in "stand alone" by providing a low cost solution for all professional requirements for countless applications where it is needed to accurately measure and record parameters of different types.

• DatLab programming software / unloading and analysis of data
• Alimentore AC / DC
• USB interface cable
• Manual
• Carrying case for instrument and accessories
• Report calibration traceable to NIST standard

• Operating in "stand alone" samples and records the measurements without the need for connection to PC

DatPRO Features

• Operating in "stand alone" samples and records the measurements without the need for connection to PC
• Works with rechargeable batteries 7.2-V
• Network Adapter from 9 .. 12Vdc
• High sampling rates up to 4000 samples per second (only on channel 1 in the frequency measurement)
• Large memory 512KB RAM
• Large graphic display showing: the measured data, the graphic, the tabular format
• The set up is programmable keyboard
• Interface USB High Speed ??
• Management sampling sessions (up to 100 sessions)
• Ability to configure measurement scales and units engineering (such as Bar, PPM, etc.)
• clock and calendar, tracking the hours and days of measured data
• Texts edited with the software to add additional information and notes on the measured data
• Powerful data analysis software compatible with Windows NT and 95/98/2000/ME/XP

Possibility of use in extreme conditions (high temperatures) with the appropriate thermal barriers configured according to the thermal profile of use.
