DATALOGGER FOR HIGH TEMPERATURE
Thermal Barriers

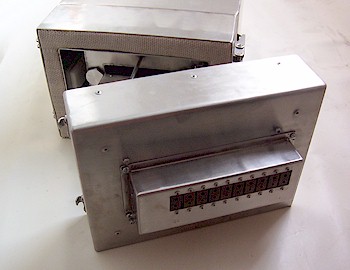

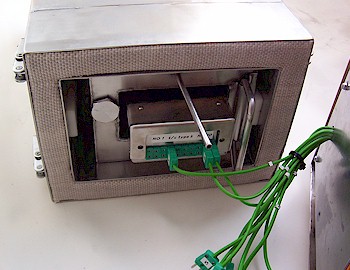

Thermal Barriers for high temperature to use with TermaPro 2
Thermal barriers are an integral part of the ThermaPro system,
and provide essential protection for the logger electronics against the high
and low temperatures used in food industry processing. Use the graph below to
select the appropriate barrier for your process application.
Before making your choice, you should consider the parameters of your process(es),
and relate them to the graph. Many temperature-controlled processes include
a number of pre-programmed temperature ramps. In such cases, total heat-energy
exposure in terms of overall time may not be obvious. If you are not sure, please
talk to your local distributor before you specify.
It is important to consider your ACTUAL time/temperature values when specifying
a barrier. On the graph, draw a vertical line from the time axis. The appropriate
barrier should be the one whose trace is immediately above the intersection
of your lines.
You may find that your process or processes are not covered by the graph. Digitron
offer other barriers, and are also able to produce Specials.
SIZE
Instrument: 140mm x 126mm
x 17mm Thermal Barriers: |
|
TB20 | 20mm X 175mm X 175mm |
TB20 | 24mm X 175mm X 175mm |
TB40 | 40mm X 180mm X 220mm |
TB60 | 60mm x 210mm x 250mm |
TB80 | 80mm x 220mm x 260mm |
TB120 | 120mm x 260mm x 300mm |
Are also available special thermal barriers with water cooling.
