- Ventilation monitoring for energy efficient building
- Evaluate cooling efficiency in the electronic device
- Aerodynamics Research
- Production Control
- Product Development
|
Features
|

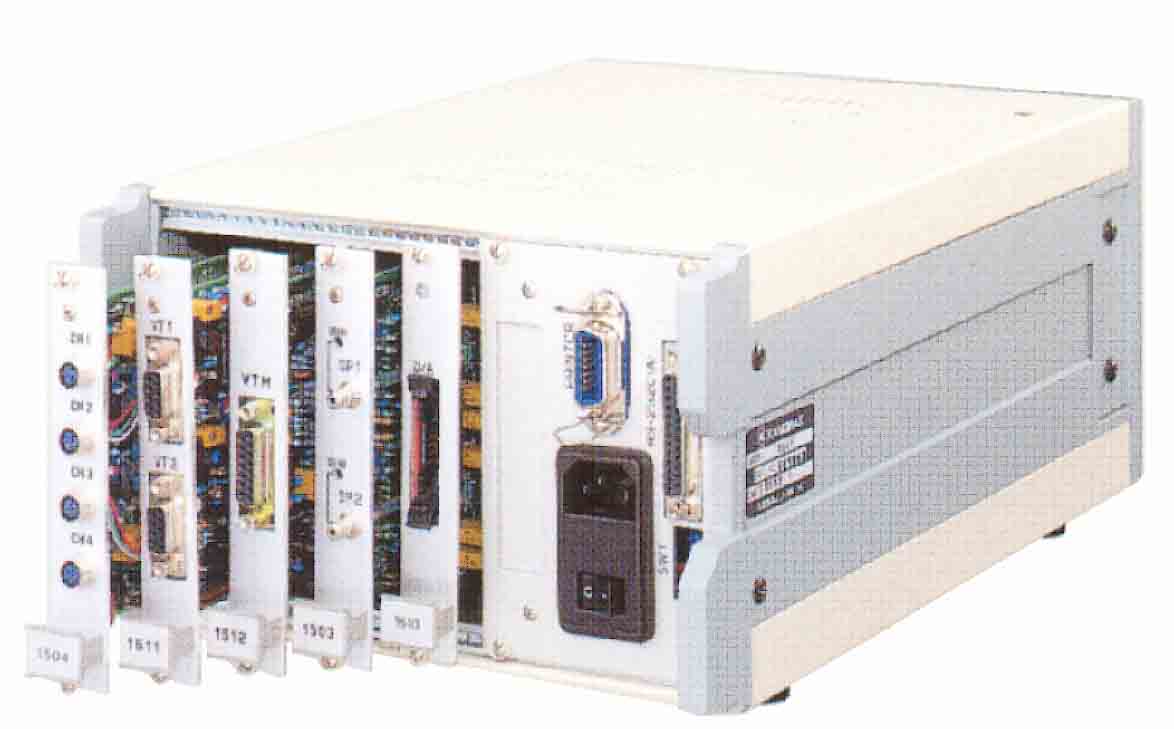

- One unit of Model 1550 has 64 Channels for air
velocity. For a larger system, connect up to 5 units in a
cascade and add a computer for control.It makes a total of 320 channels.
- Flexibility in system configuration means greater freedom, simplicity, and efficient in measurement
- 4-channel air velocity module Model 1504
- 2-channel air velocity and temperature module Model 1511
- 1-channel air velocity, temperature, and humidity module Model 1512
- Analog output module Model 1510
|
Benefits
|
- Combine these modules and design a multi-channel system freely.
- More modules can be added whenever necessary
|
Velocity
Probes
|
|
|
Velocity
& Temperature Probes
|

|

|

|

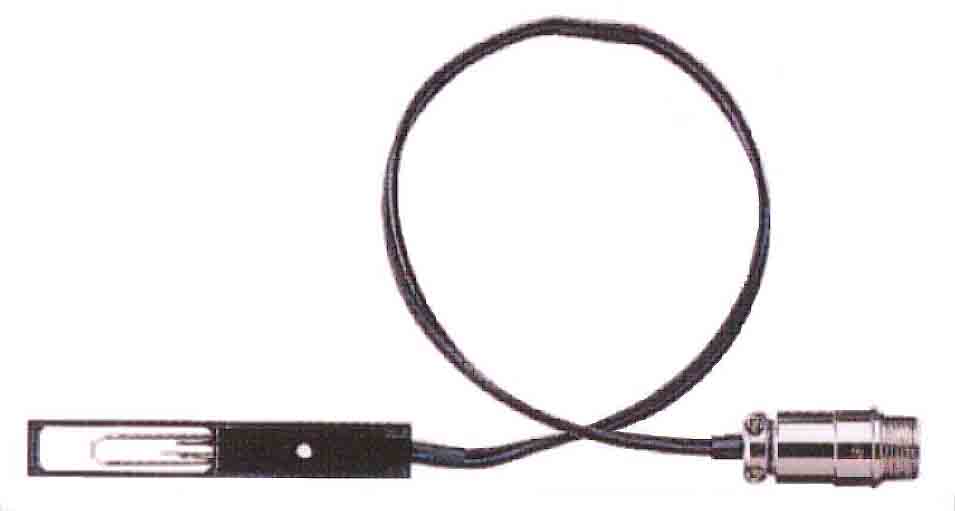

Model 0962-21 Caramel
|

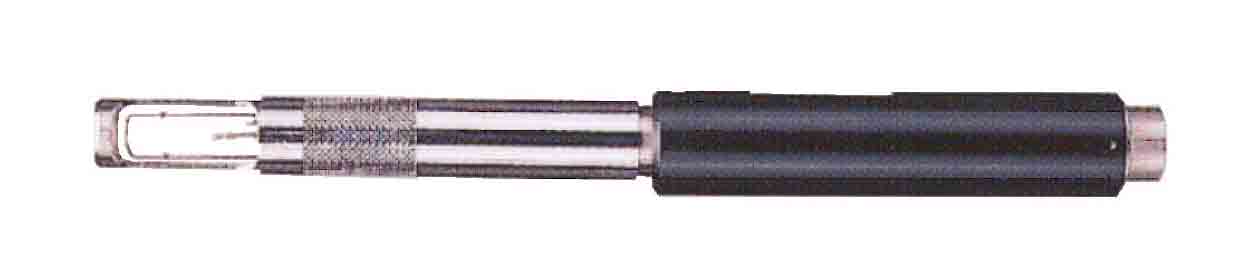

Model 0963-21 Rod
|

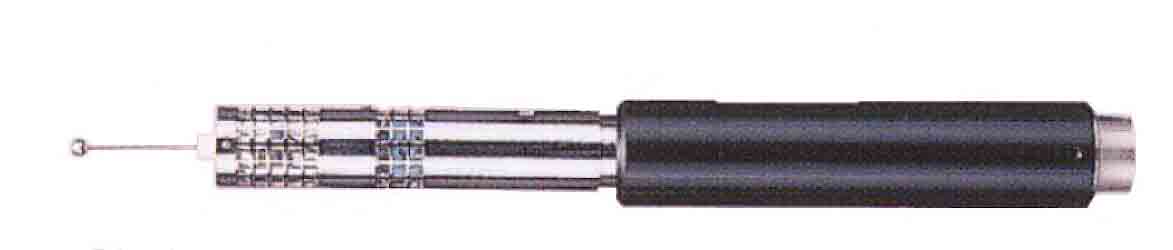

Model 0965-31 Spherical
|
|
|
Velocity,
Temperature, & Humidity Probes
|

|

|
Model 0963-31 Rod
|
Model
0965-31 Spherical
|
|
|
Modules
|
 |
 |
 |
 |
 |
Model 1504 |

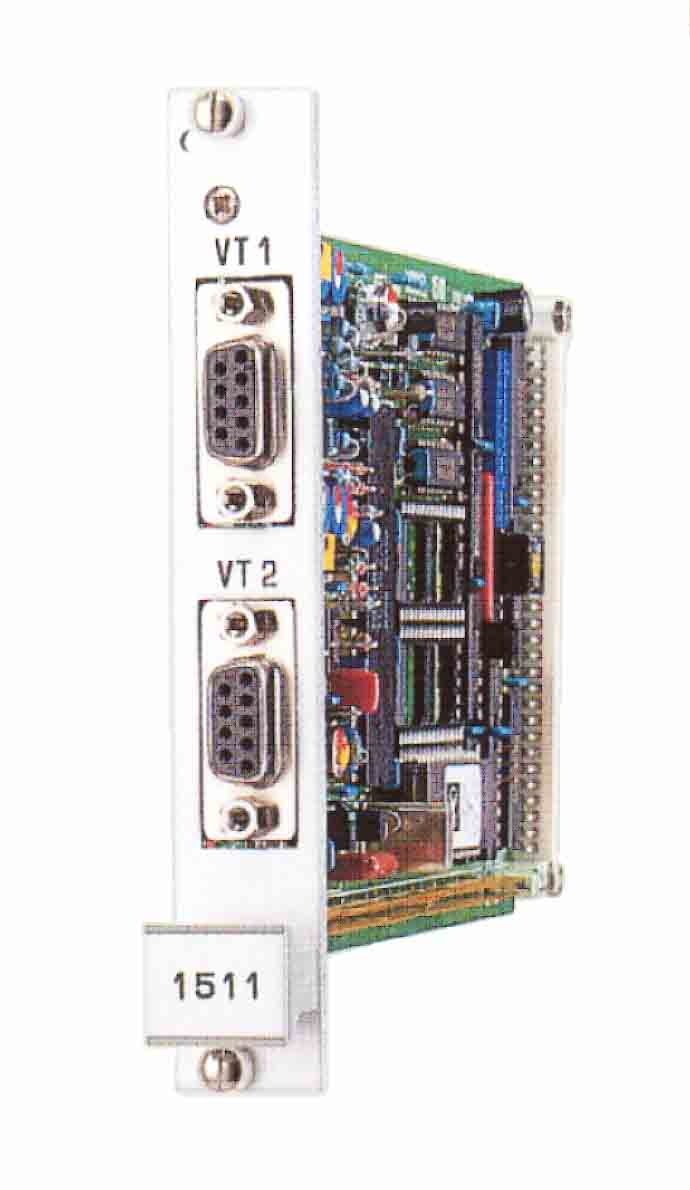

Model 1511 |

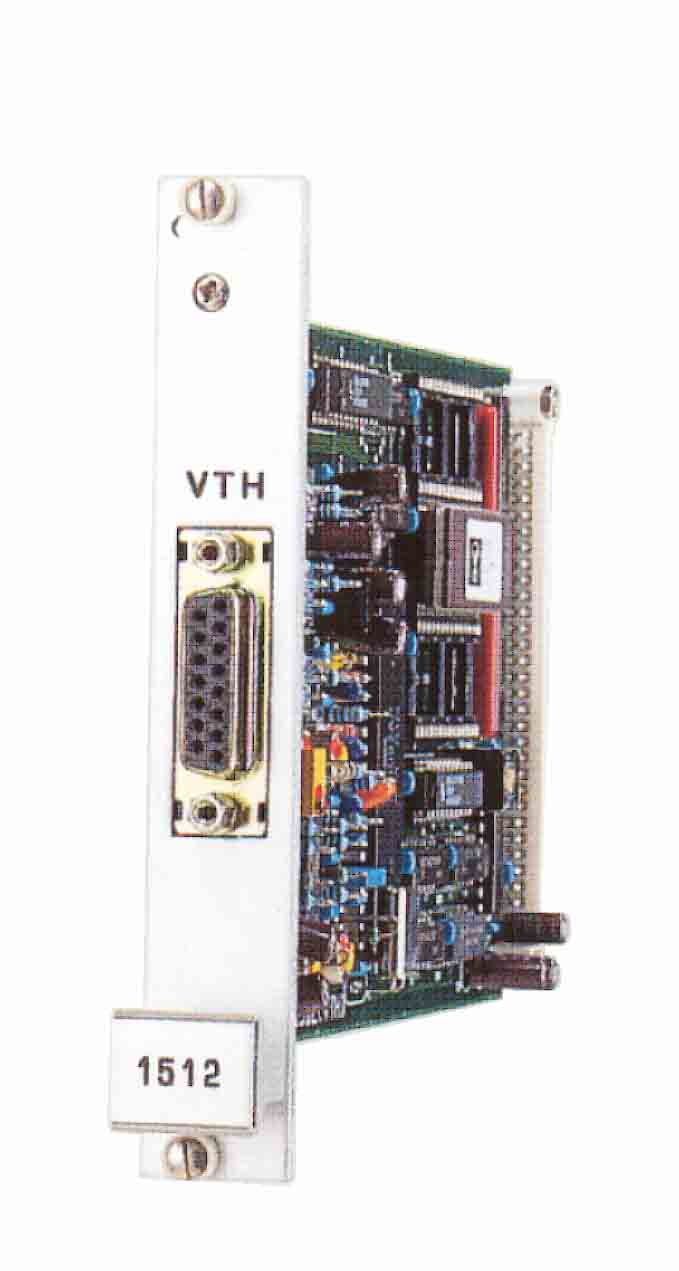

Model
1512 |

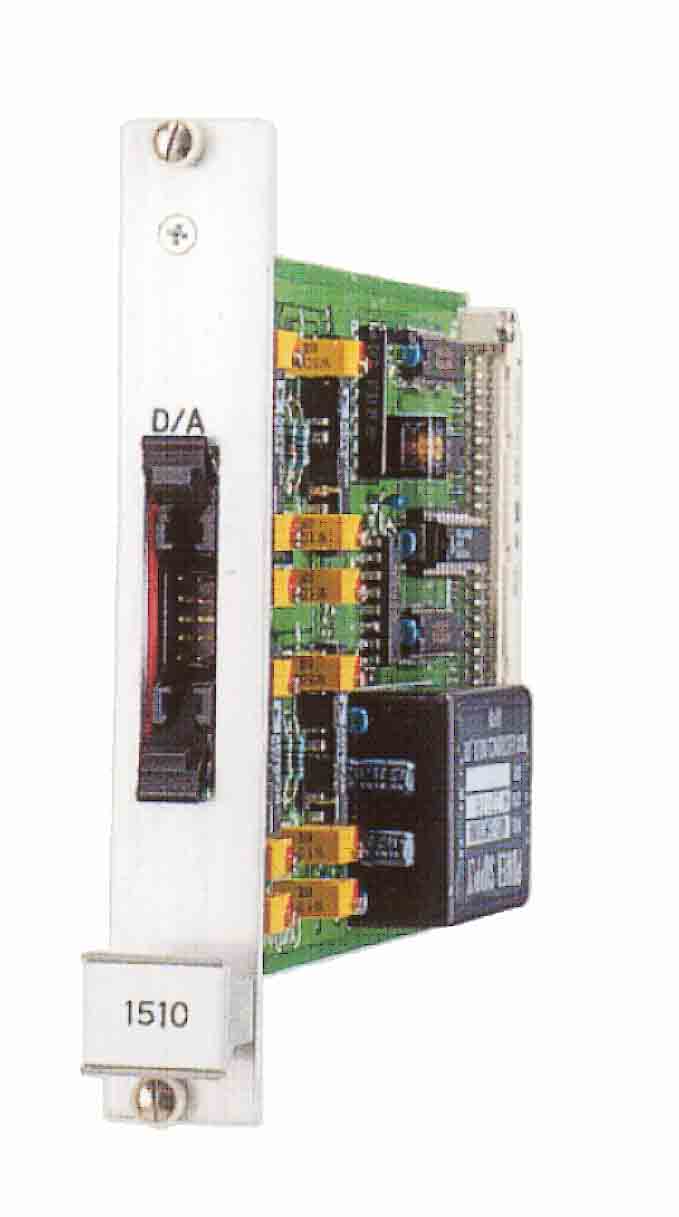

Model 1510 |
4 x Air
velocity
|
2x Air
velocity + temp
|
1 x Air velocity, temp, R/H
|
Analog Output
|
|
|
|
Main
Unit Specifications
|
Model
|
1550
|
1560
|
Display
|
LCD
(with backlight) Simultaneously displays on a
module basis
|
MAN:
Select modules by operating the UP/DOWN
switches
|
AUTO:
Automatically select s modules every 2 seconds
to display data
|
Function
|
Burst
Mode: Transfers data of all
channels at high speed
Channel Mode: Transfers data of the
specific channel only
|
Data Selection: Outputs instantaneous values
every specified sampling time, and outputs
the average
|
Interface
|
Data transfer: RS232C
(standard), extended RS232C (optional) and
GP-IB (optional)
|
Baud Rate: 300, 600, 1200, 2400,
4800, 9600, 19200bps(selectable)
|
Printer output: Centronics (the
system prints data only of the module display,
every 2 seconds.)
|
Dimensions
|
16.9” x 19.6” x 5.5” (430 x 500
x 140 mm)
|
8.9” x 12.8” x 5.5” (226 x 325 x
140mm)
|
Weight
|
Approx. 22lbs (Approx. 10kg)
|
Approx. 11lbs (Approx. 5kg)
|
|
