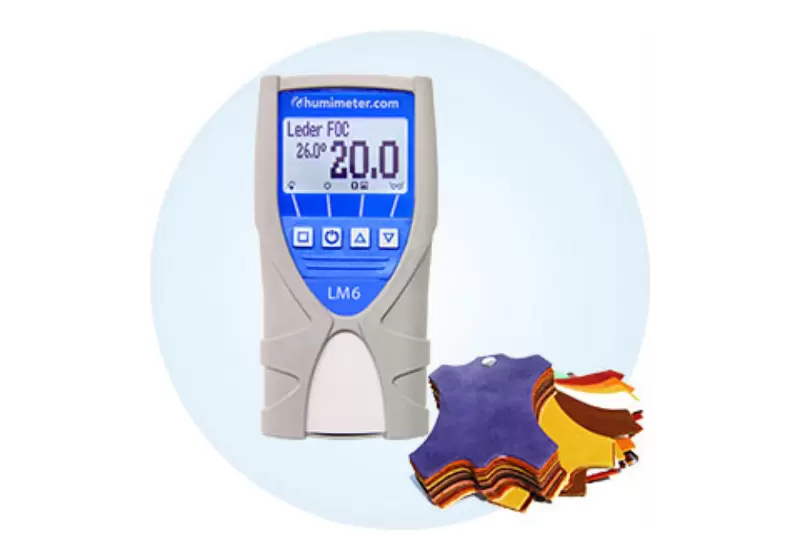

LM6 Leather Moisture Meter

LM6 Leather Moisture Meter

Operation and use:

Select the correct calibration curve (depending on the density of the leather) and press the instrument against a stack of hides of at least 10 mm. The display will immediately show the water content and temperature of the sample. The measuring procedure does not damage the surface of the leather. By taking a few measurements at different points on the leather, the average water content can be quickly determined.

Benefit from the non-destructive measuring method and optimize drying costs and maintenance hours by recognizing changes in humidity or extreme wet spots over time. Thanks to the integrated data log, measurement values can be saved and additional information can be added, such as the batch number. An optional USB interface is available for transferring measurement data to the PC. With the included LogMemorizer software, measurement values can be archived, edited, exported and printed.

Download

Portable meter for the tanning industry, for measuring both Wet Blue and dry leathers, without damaging the leather.

Technical data:

  • Measurement range from 3% to 65% water content
  • Resolution 0.1% water content; 0.5°C
  • Measurement depth: 5 mm
  • Operating temperature from 0 to +40°C
  • Automatic temperature compensation
  • Temperature is interchangeable between °C and °F
  • Instant measurement results without needing to prepare samples
  • Online function
  • Hold function
  • Manual storage of measurements up to 10,000 values with measurement location description
  • Large, backlit LC display
  • Menu in Italian, English, German, French, Spanish and Russian, others on request
  • Standard equipment: humimeter LM6 with protective rubber and batteries, wooden case and control panel
  • Optional: humimeter USB data interface module with LogMemorizer software for recording and analyzing measurement data on the USB stick, printer

Your advantages

  • Non-destructive measurement
  • High measurement range from 3% to 65% water content
  • Measurement within seconds
  • High precision through temperature compensation
  • Fast average determination
  • Menu in Italian, English, German, French, Spanish and Russian, others on request
  • Packaging unit: special 10% discount for orders of 5 pieces

Item no. 12158 humimeter LM6 Moisture meter for hides and leather

ATTENTION: Especially for small, packaged or sewn finished products, we recommend the humimeter RH5 (see paper/cardboard sector)

Richiesta Informazioni

Prodotti correlati

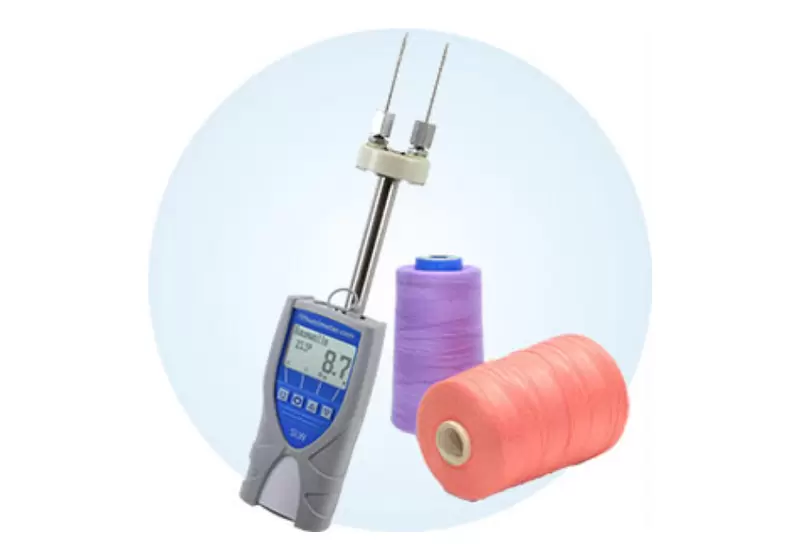

SLW Moisture Meters for Fabrics and Textiles
